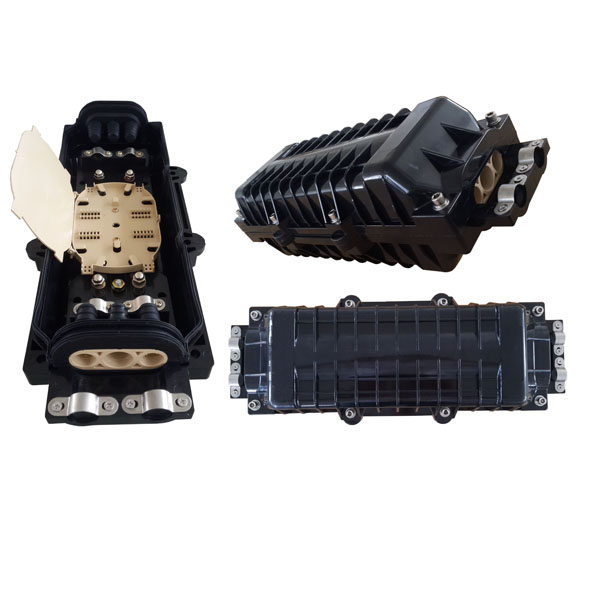

Horizontal Optical Closure 2in 2out

Horizontal type Fiber Optic Splice Closure with two inlets/outlets
Innovative design is horizontal type with one hinge in one side and open in another side. It is the most reliable FOSC with the simplest installation in the world. The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic ABS or PC by numerical control equipment; therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, compressing, and impacting, bending, tensioning, axial tensioning.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +75℃
Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way

Dimension (mm): 53 *19*15CM
Cables Entry & Exit：2Entry 2Entry
Cable Diameter (mm): Φ7-Φ25
Sealing Structure : silicon gum material Sealing
Material: PC
Maximum capacity: Bunchy 12-192 cores ; Ribbon:288 cores

Span-life: 30 years.

Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
